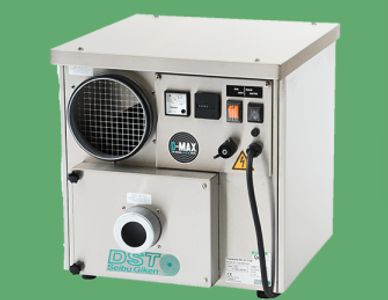

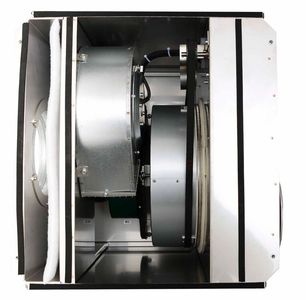

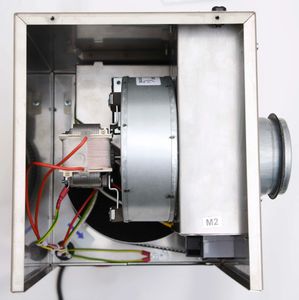

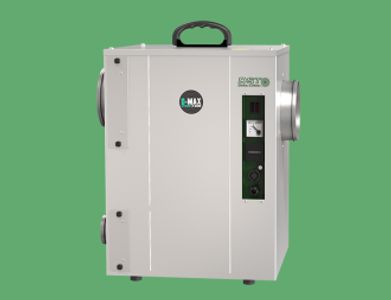

Consorb DC-31 T10, T16

CONSORB DC-31 T10/T16

DC-31 T10/T16 IS A PORTABLE SINGLE PHASE UNIT IN STAINLESS STEEL


DC-31 dehumidifies according to the Consorb-principle, The unit works good if there is a large difference in moisture content between process and regeneration air inlets. It has a self-regulating heater, a protected control panel and a washable rotor. The DC-31 comes in two versions; one for 10A supply fuse and one for 16A.

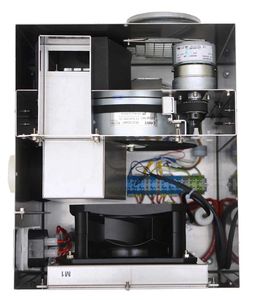

CAPACITY (What's Inside)

Capacity: 1.4 - 2.1kg/h* / Dry air flow: 300 - 490m3/h


*Dehumidifying capacity at 20°C / 60%RH

More Details

Datasheets (English, French)

Drawings

COB-DST-DC-31-T1016-EN (pdf)Download
COB-DST-DC-31-T1016-FR-3 (pdf)Download
COB-DST02465-01-Dimensionsritning-DC-31-T10 (pdf)Download
COB-DST02427-01-Dimensionsritning-DC-31-T16 (pdf)Download

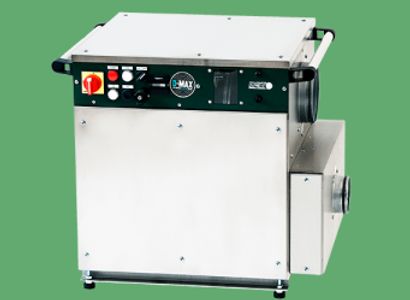

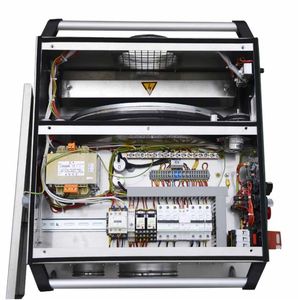

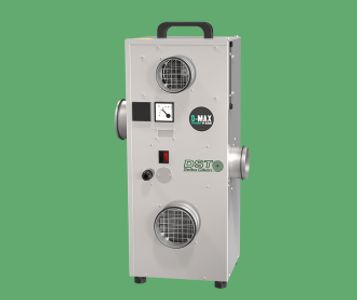

CONSORB DC-50R

CONSORB DC-50R

THE DC-50 HAS A SIMILAR HOUSING TO THE DR-50 BUT RUNS WITH TWO FANS


The DC-50 has a resistive heater and needs a three phase supply. This unit is the right choice when you need to recirculate air in a room and there is a large difference between moisture content of the air in a room and the air outside. As an option it is possible to control the capacity with a 0-10Vdc signal, for example from regulator EH3.

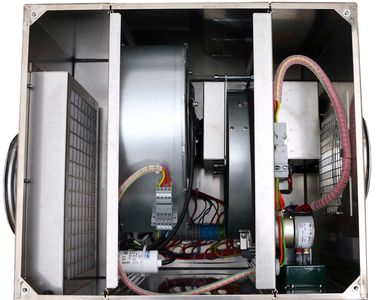

CAPACITY (What's Inside)

Capacity: 3.0kg/h* / Dry air flow: 550m3/h


*Dehumidifying capacity at 20°C / 60%RH

More Details

Datasheets (English, French)

Drawing, Dry Airflow, Wet Airflow


COB-DST-DC-50-EN (pdf)Download
COB-DST-DC-50-FR (pdf)Download
COB-DST-050-1-9121-03-Dimensionsritning-DC-50R (pdf)Download
COB-DST-Dry-air-DC50 (pdf)Download
COB-DST-Wet-air-DC50 (pdf)Download

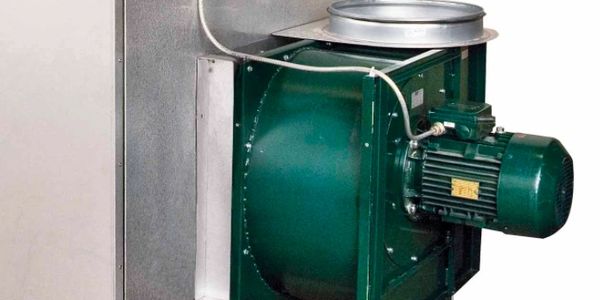

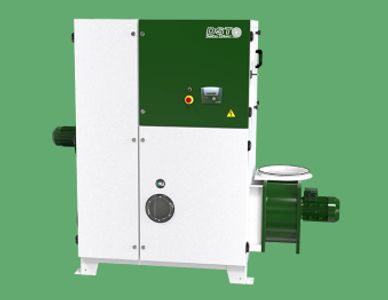

CONSORB CZ-SERIES STD/ICE

CONSORB CZ-SERIES STD/ICE

THE CZ DEHUMIDIFIERS ARE IDEAL FOR INSTALLATIONS WITH A LARGE DIFFERENCE IN MOISTURE CONTENT BETWEEN PROCESS AND REGENERATION AIR, SUCH AS IN TROPICAL CLIMATES. THEY CAN ALSO UTILIZE HOT WATER FOR REGENERATION, EITHER ONLY HOT WATER OR IN COMBINATION WITH ELECTRIC HEATER


The CZ dehumidifiers are made with aluzinc and have an excellent deep drying ability. Besides hot water and electric also steam and gas can be used for regeneration heater. They are also available in an ICE-version with higher process airflow, ideal for re-circulating installations.


CAPACITY (What's Inside)

Capacity: 22 – 69kg/h* / Dry air flow: 3200 - 8000m3/h


*Dehumidifying capacity at 20°C / 60%RH

More Details

Datasheets (English, French)

ICE Datasheet (English, French), Drawings

COB-DST-CZ-EN-1 (pdf)Download
COB-DST-CZ-FR (pdf)Download
COB-DST-CZ-ICE-EN (pdf)Download
COB-DST-CZ-ICE-FR-1 (pdf)Download
COB-DST02710-01-Installationsritning-CZ-82 (pdf)Download
COB-DST02493-02-Installationsritning-CZ-82S (pdf)Download
COB-DST02699-01-Installationsritning-CZ-104S (pdf)Download
COB-DST02572-02-Installationsritning-CZ-104 (pdf)Download
COB-DST02680-02-Installationsritning-CZ-102-1 (pdf)Download
COB-DST02683-01-CZ-102LS-Installationsritning (pdf)Download
COB-DST02699-01-Installationsritning-CZ-104S (pdf)Download

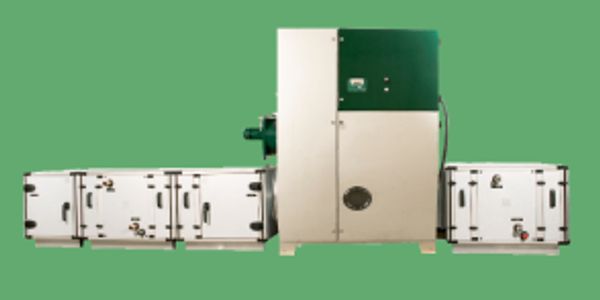

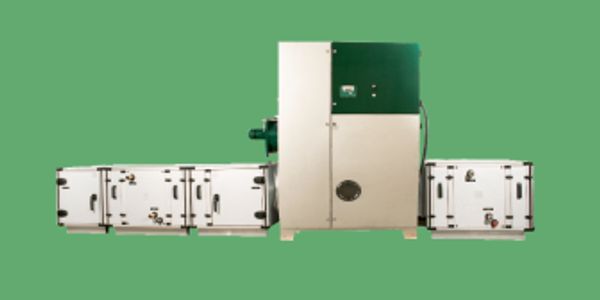

CZ FLEX

CZ Flex

PRECISELY PLANNED


CZ FLEX consists of a modular system integrated with an CZ standard dehumidifier. Choose components such as precooling and postcooling, or integral temperature and moisture control. DST supplies a complete unit, which results in simpler planning, faster commissioning and unequivocal functional responsibility compared with systems built up via several different suppliers. All control functions are tested at the factory prior to delivery. The CZ FLEX are developed from the CZ standard series, available in the sizes CZ-82/102/102L/104.

Capacity (What's Inside)

Capacity: 57 – 141kg/h* / Dry air flow: 3200 - 8000m3/h


*Dehumidifying capacity at 20°C / 60%RH

More Details

CZ Flex Folder

COB-DST-CZ-Flex-folder-GB (pdf)Download

Social

Contact Us

Drop us a line!

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

The Cobeal Group

Cobeal, Inc.

Cobeal, S.A. de C.V.

Constructora de Bóvedas de America, S.A. de C.V.

Restauración Industrial, S.A. de C.V.

Ventilación Industrial, S.A. (VISA™)

VISA® Ingeniería Sistemas y Control

Hollsten Enterprises, Pte. Ltd.

Hollsten Industries, Inc.

Climatron, S.A.

Politron, S.A.

Ductos Rapid, S.A. de C.V.

Message us on WhatsApp

USA +1 (916) 526-3686 / Mexico (+52) 777 420 2408

Contact Us for More Information:

Info@Cobeal.com

The Consorb Principle

Sorption Technology

The Consorb principle is normally used at low regeneration temperatures, e.g. if you have surplus heat or when dehumidifying very damp air. The Consorb principle is also good when there is a large difference in moisture content between process and regeneration air inlets.

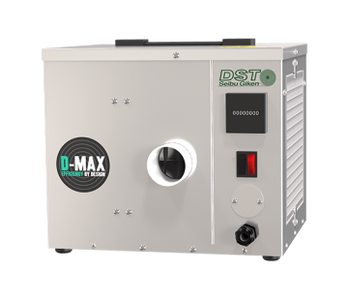

Consorb CS-5/-5L

CONSORB CS-5/-5L

The CS-5 IS A HANDY, EASY TO PLACE, SORPTION DEHUMIDIFIER


This unit was developed to meet the demands of very silent dehumidifiers that can be placed in domestic water damaged areas. The chassis is made of stainless steel. The D-MAX rotor is washable.

CAPACITY (What's Inside)

Capacity: 0.35 - 0.4kg/h* / Dry air flow: 65 - 90m3/h


*Dehumidifying capacity at 20°C / 60%RH

More Details

Datasheets (English, French, Spanish)

Drawing

COB-DST-CS-5-EN (pdf)Download
COB-DST-CS-5-FR-2 (pdf)Download
COB-DST-CS-5-SP-1 (pdf)Download
COB-DST05567-00-Dimensionsritning-CS-5_CS-5L (pdf)Download

Consorb DC-10

CONSORB DC-10

The DC-10 WEIGHS ONLY 15 KG AND DEHUMIDIFIES ACCORDING TO THE CONSORB-PRINCIPLE


The DC-10 dehumidifier is maintenance friendly, has a long lifetime and rust free chassis. DC-10 dehumidifies according to the Consorb-principle which is good if there is a large difference in moisture content between process and regeneration air inlets.

CAPACITY (What's Inside)

Capacity: 0.6kg/h* / Dry air flow: 190m3/h


*Dehumidifying capacity at 20°C / 60%RH

More Details

Datasheets (English, French)

Drawing

COB-DST-DC-10-EN (pdf)Download
COB-DST-DC-10-FR (pdf)Download
COB-DST04710-00-Dimensionsritning-DC-10 (pdf)Download

CONSORB DC-20/30 T10, T16

CONSORB DC-20/30 T10, T16

DC-20/30 IS A PORTABLE SINGLE PHASE UNIT IN STAINLESS STEEL


DC-20/30 dehumidifies according to the Consorb-principle which is good if there is a large difference in moisture content between process and regeneration air inlets. It has a self-regulating heater, a protected control panel and a washable rotor.

CAPACITY (What's Inside)

Capacity: 1.1 – 1.5kg/h* / Dry air flow: 310 - 400m3/h


*Dehumidifying capacity at 20°C / 60%RH

More Details

Datasheets (English, French)

Drawing

COB-DST-DC-20-30-T10-T16-EN (pdf)Download
COB-DST-DC-20-30-T10-T16-FR (pdf)Download
COB-DST02167-01-Dimensionsritning-DC-20-DC-30 (pdf)Download
